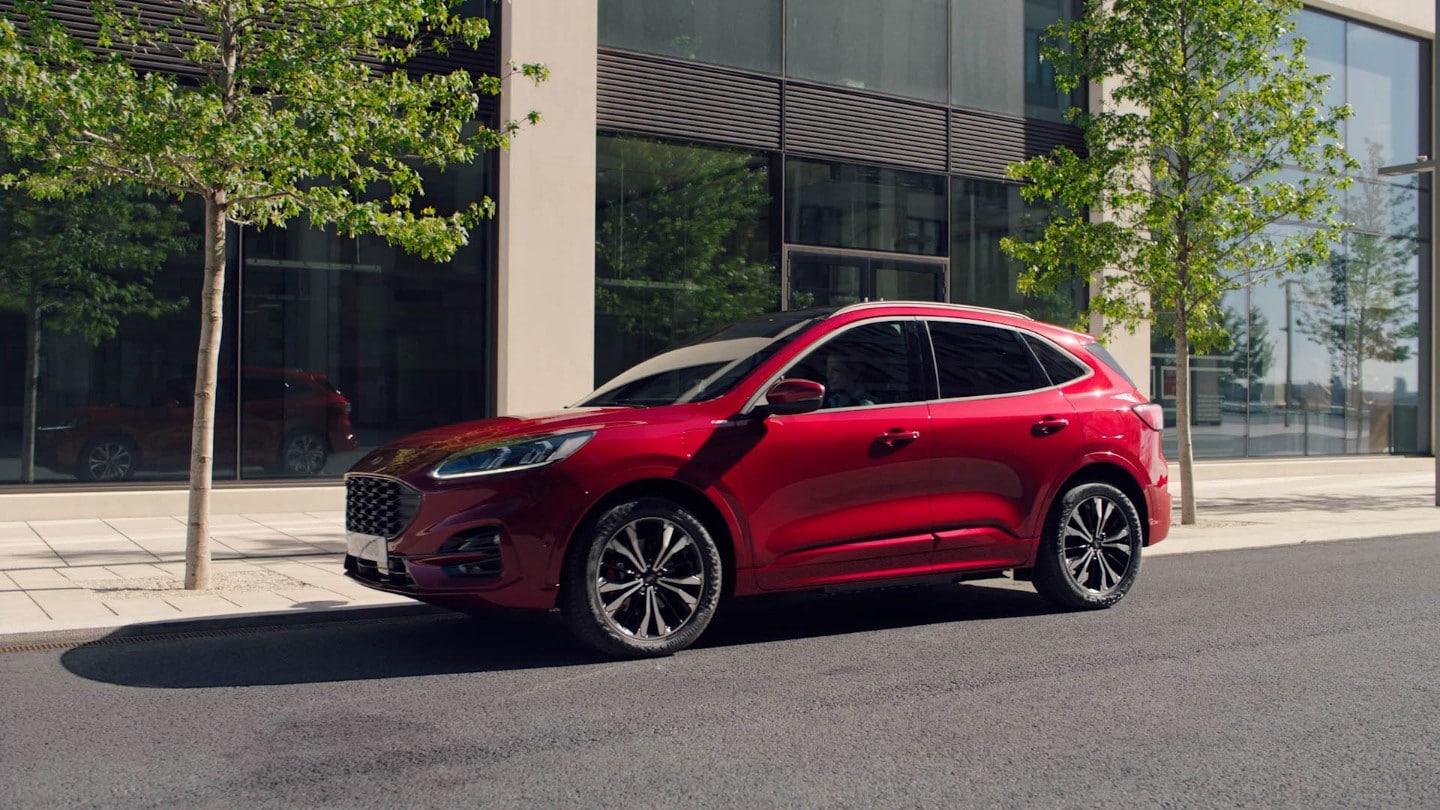

Model shown is a Ford Kuga ST-Line X Plug-in Hybrid
Keeping your Ford Kuga Plug-in Hybrid charged is simple. And once it’s fully charged you can drive of up to 45 – 63 KmKuga Range WLTP. (WLTP Test Results) on electric power alone. That increases to 88 km when driving in urban locations with lots of stop-start traffic.
This page is where you’ll find everything you need to know about charging your new Kuga Plug-In Hybrid, including information on charging times, electric range, CO2 emissions, and more.
The time it takes to charge your Kuga Plug-In Hybrid battery can vary depending on whether you’re at home or in public, and what type of connection you’re using.
A domestic charging cable is supplied with your Kuga as standard. This enables you to plug your Kuga into a domestic socket to recharge. Additionally, the Ford Connected Wallbox, EVBox+ Elvi Wallbox, is available for faster home charging. This is an optional accessory, available at additional cost.
The table below shows how long it takes to charge the Plug-In Hybrid battery from empty to full using a standard domestic cable, a Ford Connected Wallbox, and at a public charging station.
|
|
|
| Charging Time | |
|---|---|
| Charge on Domestic Exterior Socket (230V 3/2 pin plug) | 6 - 6.5 hours |
| Charge using the Ford Connected Wallbox (7kW) | 3 - 3.5 hours |
| Charge on Public Charging Station | 3 - 3.5 hours |
Your Kuga Plug-In Hybrid comes with one EV home charging cable as standard. You can purchase a public charging cable from your dealer.
Works using a 3-/2-pin plug at one end and a 7-pin plug at the other
Charge time: 6 hours
Comes with a Type 2 cable.
Charge time: 3 - 3.5 hours

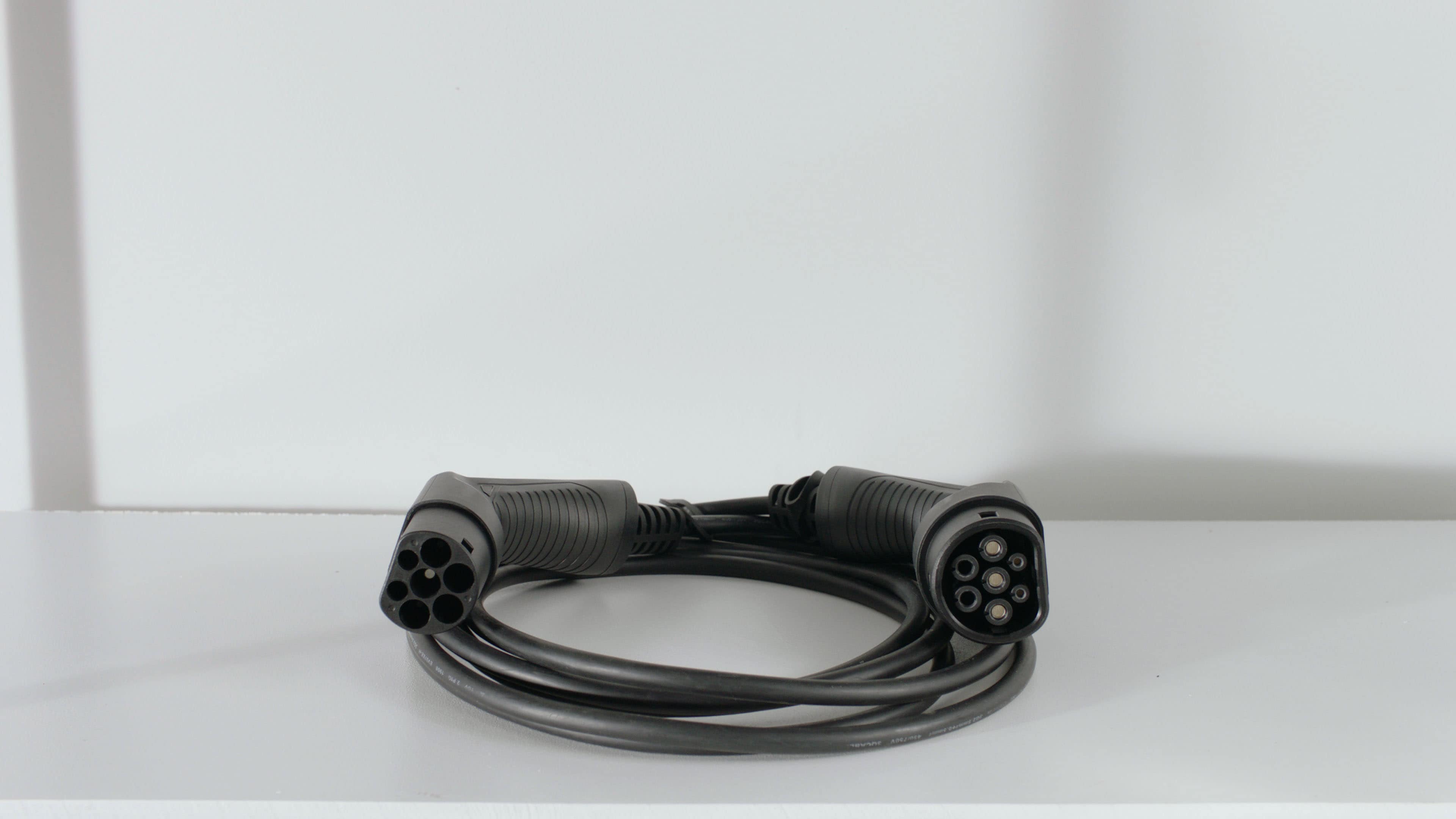

Type 2 cable with Male and Female ends.
Charge time: 3 - 3.5 hours
Recharging your PHEV is easy.
A domestic charging cable is supplied with your Kuga. This has a traditional domestic plug on one end, and a plug that fits into the hybrid car on the other. Simply plug your Kuga into a wall socket to begin charging.
If you install a wallbox home charging point, then your charging speeds will be significantly faster. Your wallbox will also include a Type 2 charging cable to enable the improved charging speeds.
Whether you use a standard domestic socket or a wallbox, you can manage charging preference through the vehicle’s SYNC screen or with the FordPass app. This lets you program when you want your Kuga to charge so it’s always ready when you are.
If you’re away from home and need to top up the Plug-In Hybrid battery, public charging stations are a simple and convenient solution. To recharge your Kuga in public, you’ll need to use the optional public charging cable. These cables use a Type 2 connector with both a male and female socket.
If want to make recharging your Kuga Plug-In Hybrid at home as fast as possible, you’ll need to install a wallbox. Simply talk to your Ford Dealer, who will work with our installation partner, Bord Gáis. Once installed, you can fully recharge your Kuga from 0-100% in approx. 3.5 hours.Tooltip
The table below outlines the Kuga PHEV range, performance and emissions data.
All data is provided by WLTP. If you’re driving short distances and using electric power alone, the CO2 emissions are reduced to zero.
|
|
|
| Electric range WLTP Overall Range (Combined) on a full charge | 61 - 63 km |
| Electric range WLTP Extra High Range (Motorway) on a full charge | 45 - 46 km |
| Urban range WLTP (Electric City) on a full charge | 88 km |
| Maximum power | 225 PS |
| CO2 emissions | 22 - 25 g/km |
| Fuel consumption (weighted combined) | 1.0 - 1.1 L/100km |
The cost of charging your Kuga Plug-In Hybrid will vary depending on whether you’re at home or using a public charge point. The table below provides an estimate of how much it costs to recharge the battery.
|
|
|
|
| Avg. Cost | Cost/KM | |
|---|---|---|
| Home charging | €3.31 | €0.06 |
If you choose to install a wallbox for faster home charging, you may also be eligible for the SEAI EV Home Charger Grant of up to 600 euros. To apply please visit the Sustainable Energy Authority of Ireland website here.
The FordPass app delivers seamless integration with your Kuga Plug-in Hybrid via your smartphone. Delivering access to a host of features, such as navigation and vehicle health alerts. Useful Plug-in Hybrid specific features include locating public charge points, managing home charging schedules, and even setting your departure times. Watch our video on how FordPass can enhance the ownership experience of your new Kuga PHEV.
